Barred Owl Neighborhood * Traffic Calming
7/15/2021 Update - Interim Installation
Staff provided an update on the process to Town Council on June 15th, 2021. Information from that meeting can be viewed here: Town of Carrboro - File #: 21-221
The Town will be installing traffic calming devices along Carol Street on Thursday, July 29th beginning at 7:30am. Planning and Public Works staff will be on site for the installation, the approximate locations of the traffic calming devices are listed below, and the concept plans can be viewed at the links provided.
- 300 Block of Carol Street - View concept plan here
- 100 Block of Carol St - View concept plan here
- Carol St @ Lorraine St - View concept plan here
The interim treatments will be in place for several months to allow time for data collection. Here are the anticipated next steps:
- October 2021 – Data Collection
- November 2021 – Neighborhood Meeting
5/17/2021 Update - Latest Data and Traffic Data Primer
Data was previously presented at the March 7, 2020 public meeting. That data can be viewed here.
Updated data for the 100 and 200 blocks of James Street (South and North of the post office driveway respectively) and for the 100 and 300 blocks of Carol Street can be viewed here.
Traffic Data Primer
To assist with review of this traffic data, definitions of relevant terms are listed below.
Average Daily Traffic – Total vehicles counted over the 48-hour period divided by two. This is the anticipated number of vehicles over a 24-hr period.
Average Speed – The sum of all speeds collected divided by the total number of vehicles measured.
85th Percentile Speed – The speed at which 85 percent of all vehicles measured are travelling slower than (Alternatively, 15 percent of all vehicles are travelling faster than the 85th percentile). Often used as a metric for the speed at the road conditions cause most drivers feel comfortable travelling.
Peak Hour Volume – The highest observed hourly volume (number of vehicles counted), used to describe the most intense traffic flow.
Peak Hour – Time of day when the peak hour volume occurs.
A note on data variability: Traffic volumes and speeds are susceptible to variations that occur due to different traffic patterns in different seasons, weather conditions, holidays, et cetera. The Town typically only collects speed and volume data when both schools (i.e. UNC and CHCCS) are in session. This past year, due to COVID-19 travel behavior has changed due to an increase in telework and a reduction in people driving to work. Aside from weather, speed data itself is less susceptible to changes due to seasonality.
The Town of Carrboro will be conducting traffic calming tests along Carol Street and James Street on Thursday, May 20, 2021 between 7:30 am and 3:00 pm
Public Works and Fire-Rescue staff will be checking spacing, dimensions and maneuverability with different vehicle types at the following locations:
- James Street at the 100 Block
- Carol Street at the 100 Block
- Carol Street at the 300 Block
- Carol Street at Lorraine Street
We are working towards an interim installation in early summer 2021.
Here are the anticipated next steps:
- Neighborhood Meeting on interim plan – Saturday, June 5
- Report to Town Council – Tuesday, June 15
Town Contact: Tina Moon, Planning Administrator
Email: firstname.lastname@example.org Phone: 919-918-7325
Project Update - 7/17/2020
The feedback received from the neighborhood during the March 7th meeting has been used to develop concept level traffic calming improvements to address the issues identified. Internal staff from multiple departments including Police, Fire, and Public Works are reviewing this concept plan. The current conditions of COVID-19 prevent us from holding any additional public input sessions at this time. We are working to create an opportunity for residents to give feedback and to have a discussion on neighborhood preferences for access control at Carol Street. We are currently planning to provide an update to the Town Council early in the fall.
In the meantime, if you observe any unsafe driving behavior occurring in your neighborhood, please direct any information you may have to the Carrboro Police Department’s non-emergency line at: 919-918-7397 or via email to email@example.com.
However, if you observe behavior that is egregiously unsafe, do not be hesitant to call 911.
Additionally, we’ve developed some temporary signage which can be installed along the streets to help better inform drivers to expect pedestrians walking in the street due to current social distancing requirements.
A version of the sign that you can print for your own use can be found here.
Neighborhood Meeting - 3/7/2020
On March 7th, 2020, the first Neighborhood Information Meeting for the Plantation Acres Traffic Calming Plan was held at Carrboro Town Hall. There were over 40 people in attendance and town staff received over 30 comment forms, which residents used to identify the problem areas related to vehicle speeds, volumes, conflicts, and other concerns observed in their neighborhood. The feedback received was aggregated based on location and type of issue identified (selected from a set of 5) to help show patterns within the neighborhood and identify the locations where the most issues were observed.
* Agenda items and other materials related to this matter may also be found under the name "Plantation Acres."

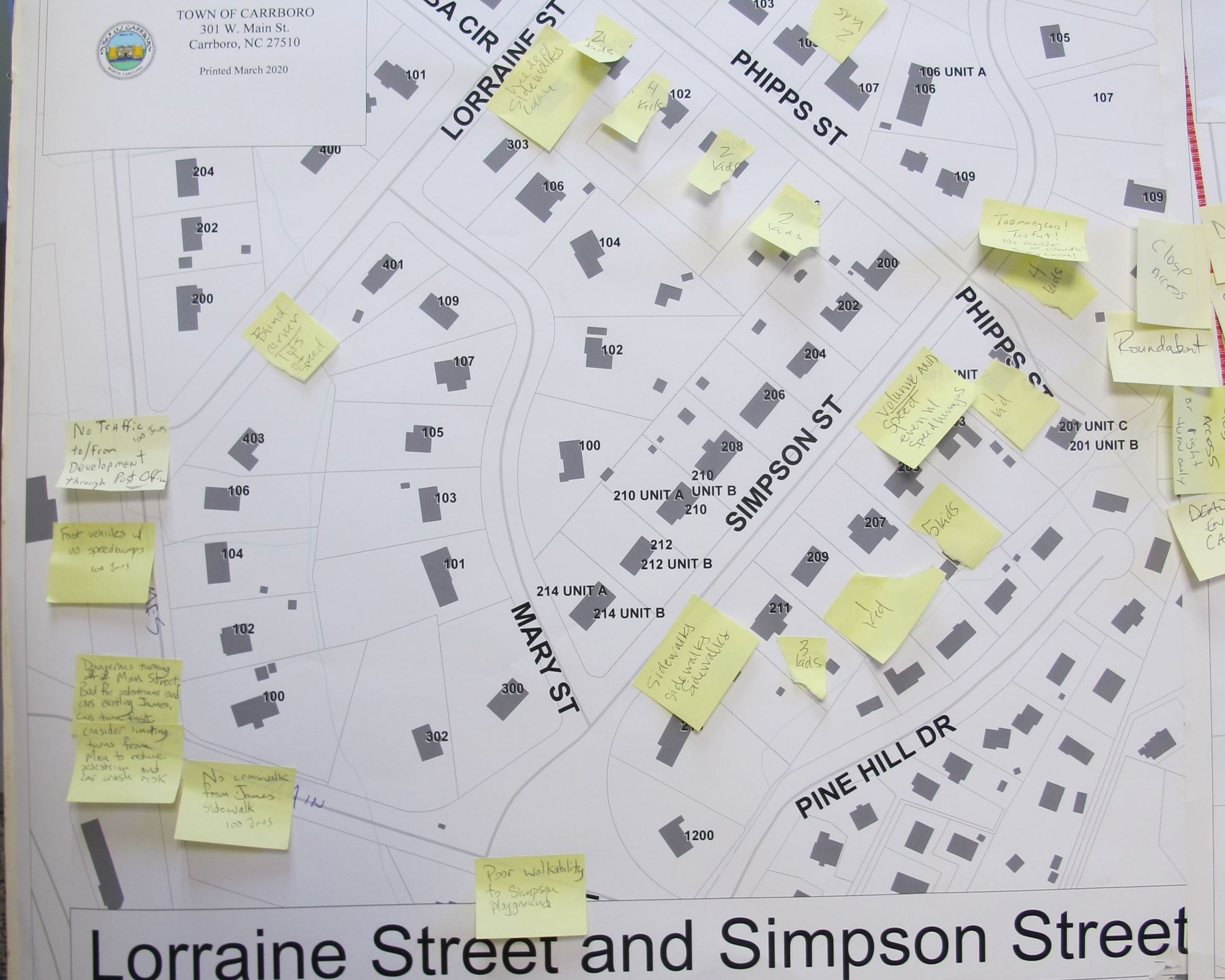

Comments around Simpson and Phipps
Comments around Lorraine & Simpson and Carol & Lisa
Comments around Lisa & Quail Roost
Comments around James Street and Rainbow Dr
Comments around James Street and Carol Street
Comments along the length of James Street
Comments around Carol St and Lorraine St
Comments around Carol Street and Old Fayetteville Rd
What we heard
Based on location, the distribution of comments received is below:
- Carol Street: 41%
- Lorraine Street: 17%
- Lisa Drive: 11%
- Simpson Street: 10%
- James Street: 10%
- All other streets: 11%
Based on type of traffic calming concern, the distribution of comments received is:
- Speeding: 27%
- Conflicts with Bikes and Pedestrians: 19%
- Peak Hour Volume: 18%
- Total Daily Volume: 15%
- Turning Vehicles: 13%
- Other: 8%
In addition to the discussion that occurring on March 7th, the neighbors of Plantation Acres compiled a number of comments through use of a Google Group, during a discussion about potential traffic calming modifications for the neighborhood. Those have been provided to the Town to be included in project documentation and can be viewed at the link below.
Plantation Acres Google Group Documentation
A visual summary of the feedback received during the March 7th meeting can be viewed on the map at the link below.
Plantation Acres Feedback Summary Map
The traffic data collected by the Town and the Lloyd Farm TIA consultant, which was presented at the March 7th meeting can be viewed at the link below.
Plantation Acres Traffic Data Map
The Traffic Impact Analysis report, which was prepared by Kimley-Horn, as part of the Lloyd Farm rezoning request, prepared in April 2019 can be accessed at the link below.
Lloyd Farm Traffic Impact Analysis Report
Information about traffic calming, as developed by the Federal Highway Administration, can be found below.
Town Staff are currently working to develop a concept plan to provide potential options for traffic calming alternatives to alleviate the issues identified during the March 7th meeting. Due to the current restrictions the Town has put in place to better limit the spread of COVID-19, we do not have a timeline for when we would anticipate future meetings to discuss traffic calming recommendations or questions about the Lloyd Farm Traffic Impact Analysis.
Any additional questions or comments can be submitted to the Town’s Transportation Planner via email at firstname.lastname@example.org or call 919-918-7325.
